CCMV Structure

Introduction

Cowpea Chlorotic Mottle Virus, or CCMV for short, is a simple T=3 plant virus of the bromovirus family. The structure became available in 1995 as PDB file 1CWP:

JRNL        AUTH   J.A.SPEIR,S.MUNSHI,G.WANG,T.S.BAKER,J.E.JOHNSON
JRNL        TITL   STRUCTURES OF THE NATIVE AND SWOLLEN FORMS OF
JRNL        TITL 2 COWPEA CHLOROTIC MOTTLE VIRUS DETERMINED BY X-RAY
JRNL        TITL 3 CRYSTALLOGRAPHY AND CRYO-ELECTRON MICROSCOPY.
JRNL        REF    STRUCTURE                     V.   3    63 1995
JRNL        REFN                   ISSN 0969-2126
JRNL        PMID   7743132
JRNL        DOI    10.1016/S0969-2126(01)00135-6

This article is publicly available.
The PDB file is available here, or at the
wwPDB.
Ankush Aggarwal used VIPERdb to generate coordinates for the whole 3*60 protein shell, including a bit of RNA. His coordinates are here
Warning: this file is big.

Some figures

To look at a whole virus and still be able to rotate it interactively, you need to use YASARA. And to calculate things on a virus you need WHAT IF.

These, sometimes rather impressive, figures are made with the amazing YASARA

Lets first give some CCMV figures to illustrate what it looks like. In each case you can click on the figure to make it rotate. The first picture is just an all-atom model looked at from some 300 Ångstrøm distance.

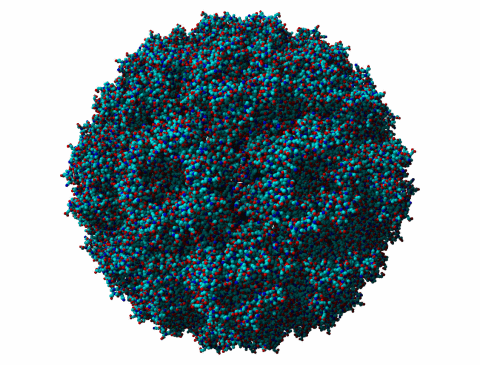

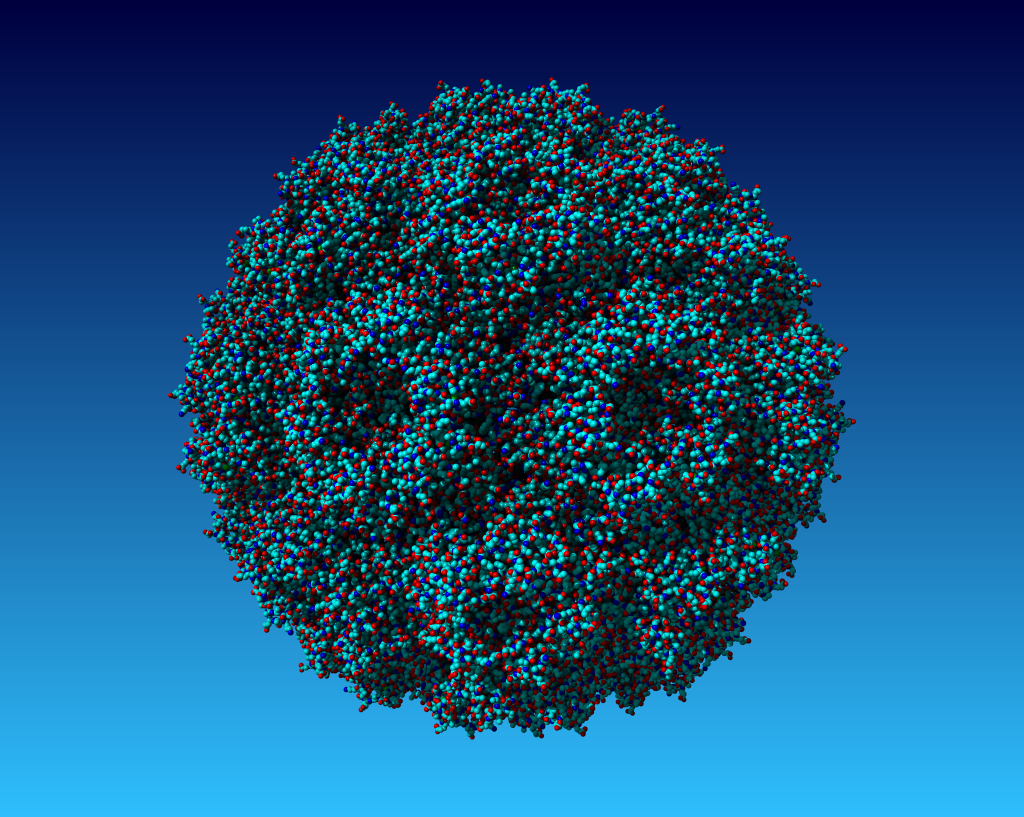

Figure 1. The all atom model of CCMV.

In the second plot we see CCMV as a ribbon-model, again from some 300 Ångstrøm distance.

Figure 2.

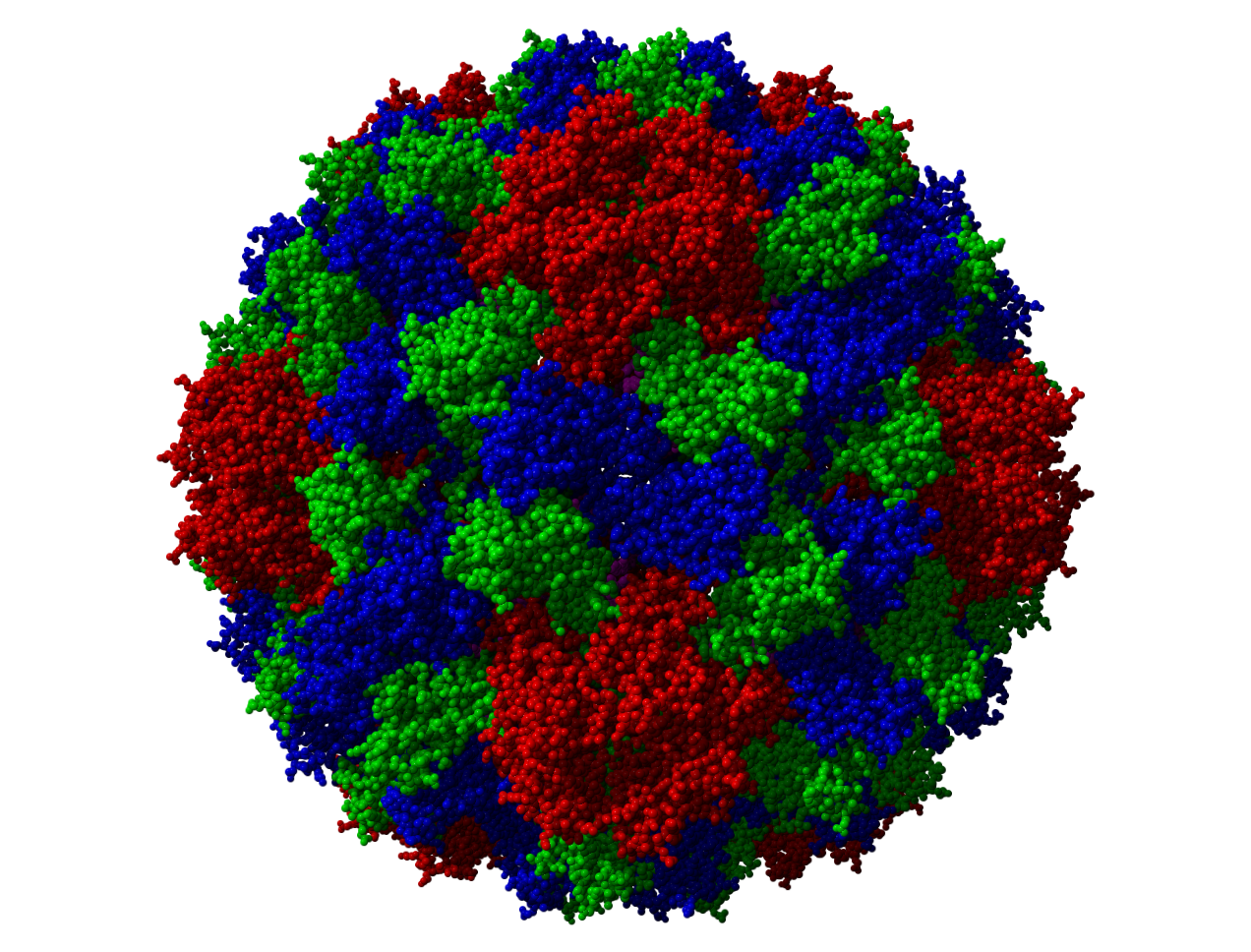

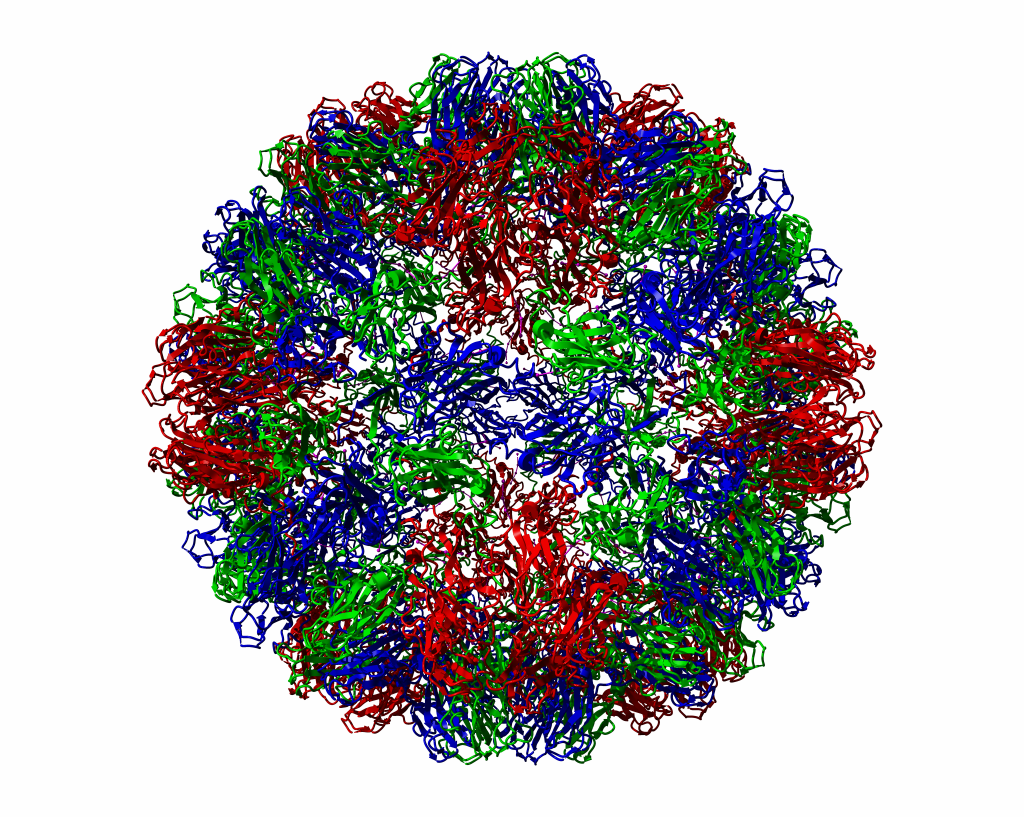

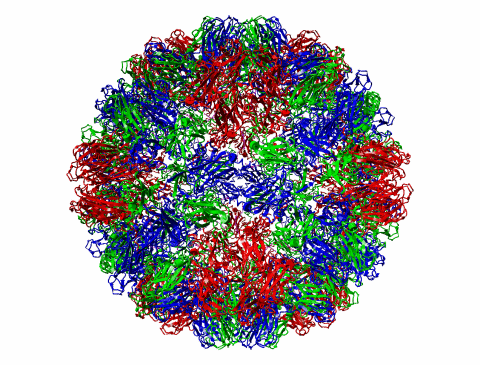

Figure 3. The all-atom model, all A chains in red, B in green, C in Blue. A chains are around the five-fold axis. B chains around the 3-fold, and C chains around the 2-fold axes. 'Around' is in this case my personal definition.

In the the next picture the camera was placed inside the virus and we see the shell from the inside rotate around us.

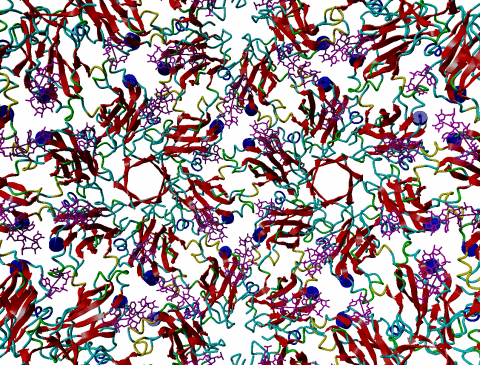

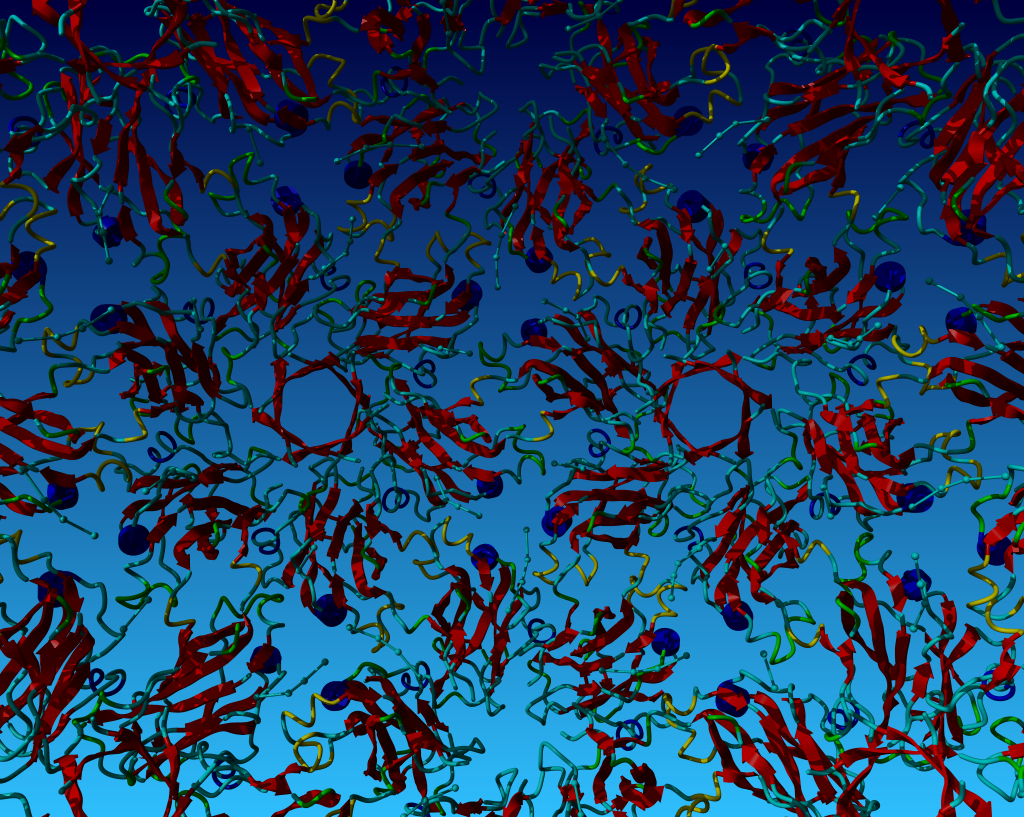

Figure 4. Strands in red, loops in blueish-yellow, helices in blue. The RNA is in purple.

Something funny. If we look at the three C-termini, we see that the Ntermini of the green and blue units are very close to each other, but the N-termini of the red chains, that cluster around the 5-fold axis, are far away from the other two. When we were doing NMR on this virus in the early 80's, we never understood why the NMR signal for the N-termini was 'less than expected'. Now we know at least how to start thinking about this point.

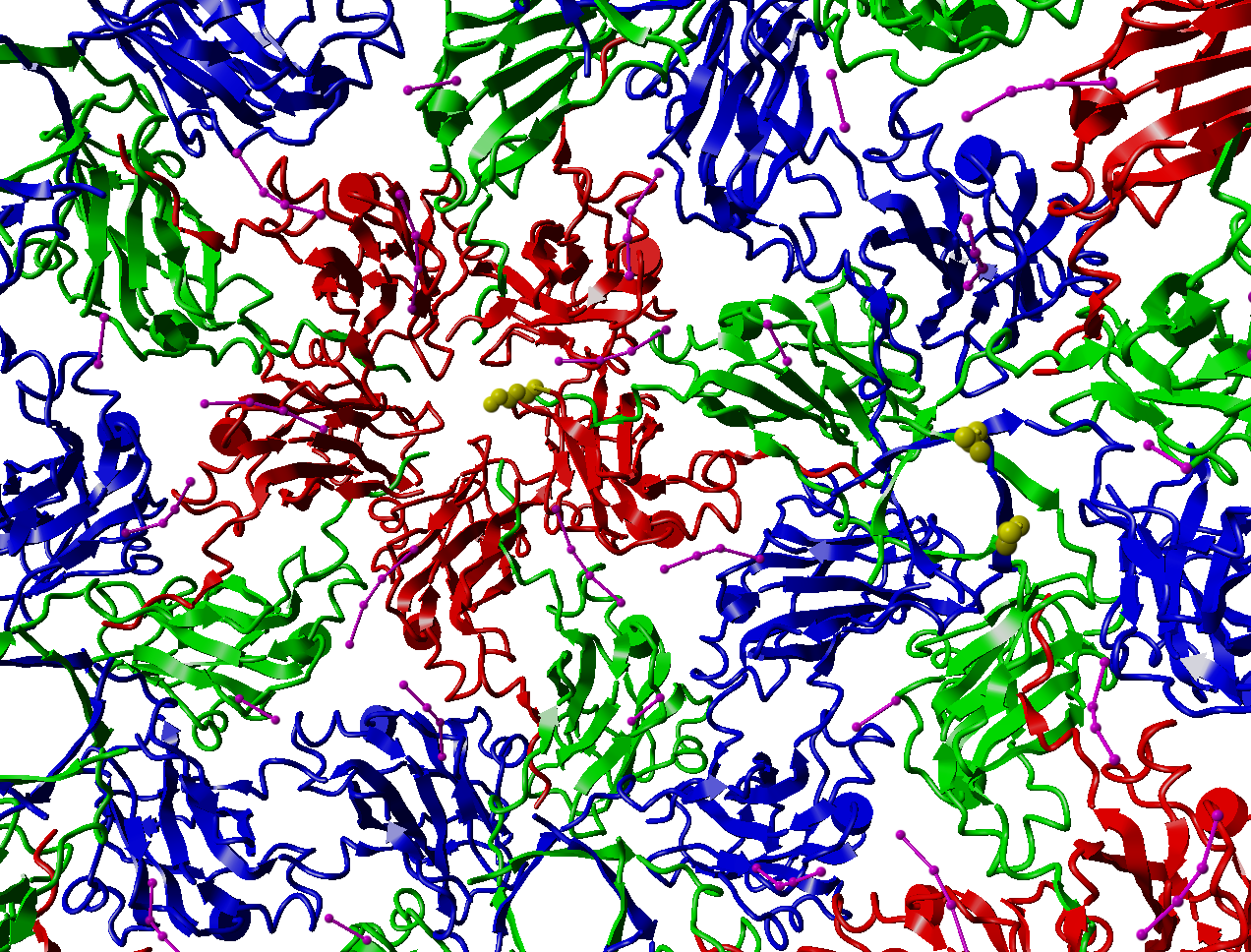

Figure 5. Location of the N-termini of the three subunits indicated by showing the most N-terminal, X-ray visible, residue as a sphere-model.
